Red-light jumping is one of the most critical traffic violations. The fact that a traffic light is red usually implies that the lights for the crossing traffic are green – and the risk for collision is considerable. Traffic lights are normally positioned at heavily trafficked intersections and where ordinary traffic signs or right-of-way rules are not sufficient to ensure fluid traffic flow. There is therefore a statistically significant chance of driving into another road-user should a red light be neglected.

The unique feature of Sensys’ radar of being able to discern distance is used to detect a vehicle passing the stop bar during the red-light phase.

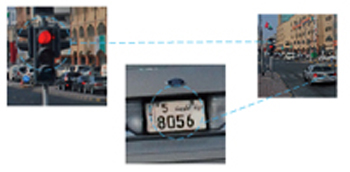

While a vehicle approaches the stop bar, its speed behaviour is analysed. If it is expected that a vehicle will not (be able to) stop before the stop bar, the system will take a picture of the vehicle just before the stop bar, showing its position, the red light and the license plate.

If the radar detects that a vehicle is indeed passing the stop bar during the red-light phase, the system will take a second picture after the vehicle has fully passed the stop bar. The second picture may be taken either by the same camera from the rear, or by a second camera located across the intersection. The latter option allows for driver identification should such be required by law.

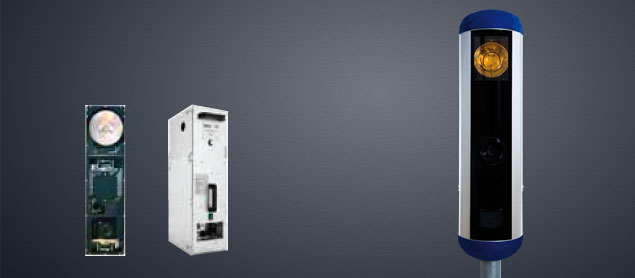

The systems are installed in cabinets, mounted on a pole. The cabinets are made for all weather conditions and can be delivered with heaters and fans or air conditioning. All units in the system are modular and rack-mounted for easy inter-changeability.

This is a selection of the most important properties for the system.
» High-resolution digital images
» Continuous speed verification by applying two independent methods
» Number plate identification
» Secure remote communication and setup
» Two images taken for evidence recording of vehicle at red light before stop bar and after stop bar
» Provides information about time, date, location, speed, speed limit, red-light time, grace time
» Rear or front photography
» Non-intrusive technology, no devices buried in the road surface
» Uses Sensys’ unique multi-tracking radar
» Tracks and measures each vehicle 21 times per second
» Triggers at an adjustable speed limit and report line
» Single or dual camera post option available
» Approved according to OIML R91

SENSYS Traffic can help you drive behavioral change with measurable effects. Sensys is the provider of intelligent solutions for traffic safety and traffic informatics that:

» Has a proven contribution to traffic safety improvements in the countries that now have the lowest fatality rates
» Delivers a range of cost-effective products, based on non-intrusive sensors
» Assures customer support throughout the product life cycle
» Offers 100% legal security for enforcement products – we have never lost an appeal against a violation
   due to technical reasons

Unlike others, Sensys Traffic’s portfolio is based on proprietary multi-tracking radar technology development, Unlike others, Sensys Traffic can offer Swedish Vision Zero knowledge and expertise to formulate and implement your strategies and to measure its effects.
